250 um Loose Tube Fiber Optic Cable , Figure 8 Fiber Optic Cable Central Steel Wire

Product Categories
Sichuan hone technology co.,ltd,
Contact Now

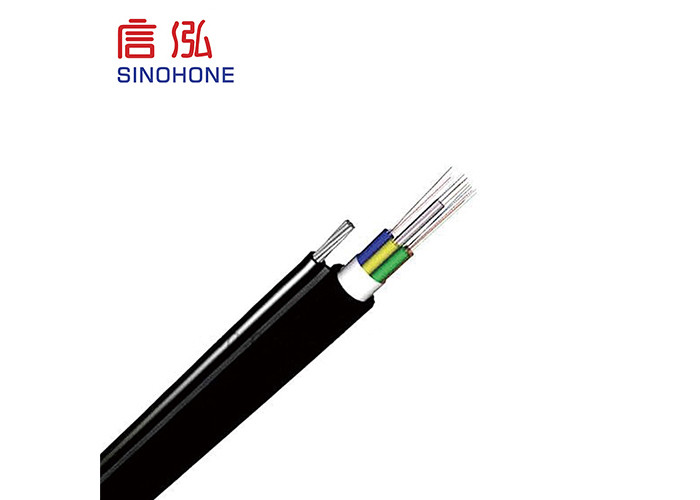

250 um Loose Tube Fiber Optic Cable , Figure 8 Fiber Optic Cable Central Steel Wire

Brand Name : SINOHONE

Model Number : GYTC8A

Certification : CPR FCC CE RoHS ISO9001

Place of Origin : Sichuan, China

MOQ : 2000 meters

Price : USD $0.38~$0.58 / meter

Payment Terms : L/C, D/P, T/T, D/A, Western Union, MoneyGram

Supply Ability : 500000 meters per month

Delivery Time : 5-8 work days

Packaging Details : Standard packing in sealed box or according to customers' requirements

Product Name : Outdoor Fiber Optic Cable

Diameter : 250 um

Structure : Loose Tube Filling Compound

Sheath : Polyethylene (PE)

Barrier : APL Moisture barrier

Central Strength Member : Steel Wire

Contact Now



GYTC 8A Self-Supporting PE Figure 8 Distribution Outdoor Fiber Optic Cable

Description

GYTC8A self-supporting outdoor fiber optic cable are filled with a water-resistant filling compound, and 250 um fibers are positioned in a loose tube made of a high modulus plastic. There is a steel wire locates in the center of core as a metallic strength member.

The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structures.


Features

  1. High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.

  2. Good mechanical and temperature performance

  3. High strength loose tube that is hydrolysis resistant

  4. Special tube filling compound ensure a critical protection of fiber

  5. The following measures are taken to ensure the cable watertight

Structures

  • Steel wire used as the central strength member

  • Loose tube filling compound

  • 100% cable core filling

  • APL moisture barrier


Optical Characteristics

G.652 G.655 50/125μm 62.5/125μm
Attenuation (+20ºC) @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm



Cable Type Fiber Count Tubes Fillers Cable Diameter Cable Weight kg/km Tensile Strength Crush Resistance Bending Radius
mm Long/Short Term N Long/Short Term Static
N/100mm /Dynamic
mm
GYTC8A-2~6 2~6 1 4 9.5×18.3 218 600/1500 300/1000 10D/20D
GYTC8A-8~12 8~12 2 3 9.5×18.3 218 600/1500 300/1000 10D/20D
GYTC8A-14~18 14~18 3 2 9.5×18.3 218 600/1500 300/1000 10D/20D
GYTC8A-20~24 20~24 4 1 9.5×18.3 218 600/1500 300/1000 10D/20D
GYTC8A-26~30 26~30 5 0 9.5×18.3 218 600/1500 300/1000 10D/20D
GYTC8A-2~6 2~6 1 4 9.5×18.3 218 600/1500 300/1000 10D/20D
GYTC8A-8~12 8~12 2 3 9.5×18.3 218 600/1500 300/1000 10D/20D
GYTC8A-14~18 14~18 3 2 9.5×18.3 218 600/1500 300/1000 10D/20D

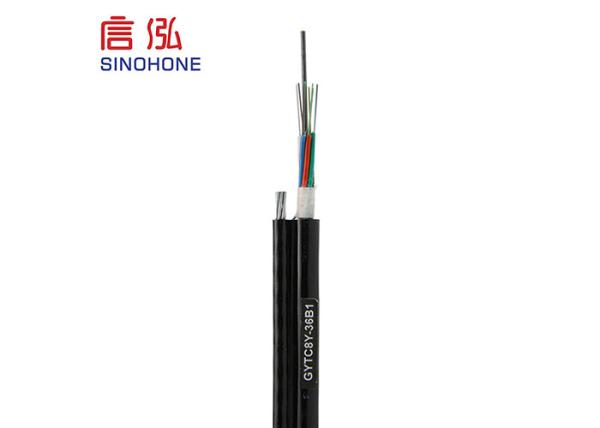

250 um Loose Tube Fiber Optic Cable , Figure 8 Fiber Optic Cable Central Steel Wire250 um Loose Tube Fiber Optic Cable , Figure 8 Fiber Optic Cable Central Steel Wire
